How to deploy PostgreSQL to Kubernetes

Mulesoft Runtime Fabric can provide an Object Store to our Mule apps by using a PostgreSQL instance.

In this post, we’re going to see the cheapest way to provide a PostgreSQL database for the Persistence Gateway of Runtime Fabric. The method consists of deploying PostgreSQL directly on the same K8s cluster of Runtime Fabric. This is NOT something we’d be doing in a production environment. In Production, we’d rather provide a PostgreSQL database running as close as possible to the RTF cluster but outside the cluster. But, for testing purposes, this is a great approach.

If you already have a PostgreSQL instance for your Runtime Fabric and want to know how to use it as Persistence Gateway you can skip this post and go to:

How to set up Persistence Gateway for Mulesoft Runtime Fabric

To deploy PostgreSQL (or postgres) in K8s we are going to create the following resources:

A namespace - We’ll create a dedicated namespace for all the resources needed for the postgres installation. It’s not 100% necessary but that will help us to isolate all of these resources from the rest of the resources in the cluster.

A ConfigMap - With a configMap we can parametrize, centralize and externalize the configuration of a deployment. In this case, we’ll include mainly the details of the connection to the database (user, password and database). Decoupling the configuration from the deployment will help us to change the configuration of postgres more dynamically and have it better organized.

For Storage: The simplest and cheapest storage we can provide for testing is to use the local storage of the worker nodes to the postgres database. We’ll be creating a PersistentVolume and a PersistentVolumeClaim to map a directory in the host (the worker node) with a path on the containers running postgres. In Kubernetes, PersistentVolume (PV) and PersistentVolumeClaim (PVC) are two key concepts used for managing storage. They work together to provide a way for pods to request and use persistent storage.

A PersistentVolume is a piece of storage in the cluster that has been provisioned by an administrator or dynamically by the cluster itself.
A PersistentVolumeClaim is a request for storage by a user. It specifies the desired size, access mode, and storage class (if any).

A Deployment - The deployment resource will contain the configuration of the pods that will run postgresl - image, version, number of replicas. The deployment will also link the configuration in the configMap and the PV/PVC to the replicas.

Service - In K8s a Service allows us to expose the replicas running postgres to be accessed internally or externally.

Let’s see how to create each resource in detail:

Namespace

Run the following to create the namespace for the postgres installation

kubectl create ns postgres

ConfigMap

Create a yaml file called mule-postgres-config.yaml for the ConfigMap

vi mule-postgres-config.yaml

Paste the following content and save the file

apiVersion: v1
kind: ConfigMap
metadata:
  name: mule-postgres-config
  namespace: postgres
  labels:
    app: postgres
data:
  POSTGRES_DB: mule_ps_db
  POSTGRES_USER: mule
  POSTGRES_PASSWORD: Mule1234

Where:

apiVersion - version of the K8s API
kind - The resource type to be created - ConfigMap
name - the name of the configMap
namespace - The name of the namespace where we’ll create the ConfigMap
labels - app: Additional metadata that helps us identify better what this ConfigMap refer to. Not 100% necessary but alway useful for clarity and organization of resources.
data - this is the section that contains the configuration we want to externalize outside the postgres deployment. This helps us to change the configuration of postgres more dynamically

POSTGRES_DB - Default database for PostgreSQL
POSTGRES_USER - Default user for PostgreSQL
POSTGRES_PASSWORD - Password for the default user

Create the ConfigMap resource

kubectl apply -f mule-postgres-config.yaml

PersistentVolume

Create a yaml file called mule-postgres-volume.yaml for the ConfigMap

vi mule-postgres-volume.yaml

Paste the following content and save the file:

# PersistentVolume
apiVersion: v1
kind: PersistentVolume
metadata:
  name: mule-ps-volume
  namespace: postgres
  labels:
    type: local
    app: postgres
spec:
  storageClassName: manual
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteMany
  hostPath:
    path: /data/postgresql

Where:

apiVersion - version of the K8s API
kind - The resource type to be created - PersistentVolume
name - the name of the PersistentVolume
namespace - The name of the namespace where we’ll create the PersistentVolume
labels

app: As mentioned earlier, additional metadata that helps us identify better what this ConfigMap refer to.
type: Additional metadata to show this persistenVolume is using local storage of the worker node

storageClassName - manual: This specifies that the provisioning of the storage is done manually, and not automatically with a storage provider as it would be in a production environment (this is only for testing purposes)
capacity/storage: Specifies the amount of storage we want to provide with this PersistentVolume
accessModes - This defines how the pods can use this PV. In this case we’re allowing the pods to read and write to this PV
hostPath: This field specifies that the volume we’re defining will be created direclty in the worker node’s filesystem. The path defines the specific directory where data will be stored in the worker node.

Create the PV resource

kubectl apply -f mule-postgres-volume.yaml

PersistentVolumeClaim

Create a yaml file called mule-postgres-volume-claim.yaml for the PVC

vi mule-postgres-volume-claim.yaml

Paste the following content and save the file

# PersistentVolumeClaim
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mule-ps-volume-claim
  namespace: postgres
  labels:
    app: postgres
spec:
  storageClassName: manual
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi

Where:

apiVersion - version of the K8s API
kind - The resource type - PersistentVolumeClaim
name - the name of the PVC
namespace - The name of the namespace where we’ll create the PersistentVolumeClaim
labels - app: Additional metadata that helps us identify this
storageClassName - Specifies the storageClassName of the request
accessModes - Specifies the access modes of the request
resources/requests/storage - Defines the amount of storage of the request

Create the PVC resource

kubectl apply -f mule-postgres-volume-claim.yaml

Deployment

Create a yaml file called mule-postgres.yaml for the ConfigMap

vi mule-postgres.yaml

Paste the following content and save the file

# Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mule-postgres
  namespace: postgres
spec:
  replicas: 3
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      namespace: postgres
      labels:
        app: postgres
    spec:
      containers:
        - name: mule-postgres
          image: 'postgres:14'
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 5432
          envFrom:
            - configMapRef:
                name: mule-postgres-config
          volumeMounts:
            - mountPath: /var/lib/postgresql/data
              name: mule-postgresdata
      volumes:
        - name: mule-postgresdata
          persistentVolumeClaim:
            claimName: mule-ps-volume-claim

Where:

apiVersion - version of the K8s API
kind - The resource type - Deployment
name - the name of the Deployment
namespace - The name of the namespace where we’ll create the Deployment
replicas - the number of pods that will be running postgres. Considering this is for testing purposes, one replica should suffice.
selector - This is how the deployment identifies the pods that belong to it. In this case all the pods with the label app=postgres
template - Defines the pod template. Every replica of this deployment that gets (re)created will use this template
containers - the specification of the list of containers to be included in this pod. In this case only one, the one that runs the postgres image
name - name of the container
image - the image that we’ll use to create the container. This is where we define the postgres image and version to be used
ports/containerPort: 5432 This is the port that will be exposed by the container and where postgresql will be listening
envFrom - This is how we can create environment variables within the container where the names and values of the variables are taken from the ConfigMap we defined earlier. Typically the code running in the image would be expecting to find these variables, as in this case, the postgreSQL installation process in the image expects to find the database name, user and password values in environment variables.
volumeMounts - In this section we specify where the volumes used will be mounted in the file system of the container. In this case, everything that the container stores in the mountPath will me mapped to the external volume we defined, in our case the file system of the host
the volumes section specifies that the volumeMount will be mapped to the PVC we created earlier, that is a directory in the worker node

Create the Deployment resource

kubectl apply -f mule-postgres.yaml

Service

Create a yaml file called mule-postgres-service.yaml for the ConfigMap

vi mule-postgres-service.yaml

Paste the following content and save the file

# Service
apiVersion: v1
kind: Service
metadata:
  name: mule-ps
  namespace: postgres
  labels:
    app: postgres
spec:
  type: NodePort
  ports:
    - port: 5432
  selector:
    app: postgres

Where:

apiVersion - version of the K8s API
kind - The resource type - Service
name - the name of the configMap
namespace - The name of the namespace where we’ll create the Service
labels - app: Additional metadata that helps us identify this ConfigMap as configuration of the Deployment/Pods we’ll define later
type - NodePort: Specifies the type of Kubernetes Service we are creating. In this case, a NodePort service will expose the deployment using the service name and port 5432 as the endpoint for our pods in the deployment.
selector - This is how the service identifies the pods to which redirect the traffic. This is the same label we used for the deployment.

Create the Service resource

kubectl apply -f mule-postgres-service.yaml

How to connect to PostgreSQL and Test it

To verify the PosgreSQL instance is working properly we’re going to open a postgres cli session within the container running postgres and run some queries For that we first need to identify the name of the pod by running

kubectl get pods -n postgres

Copy the name of one of the pods and then run the following:

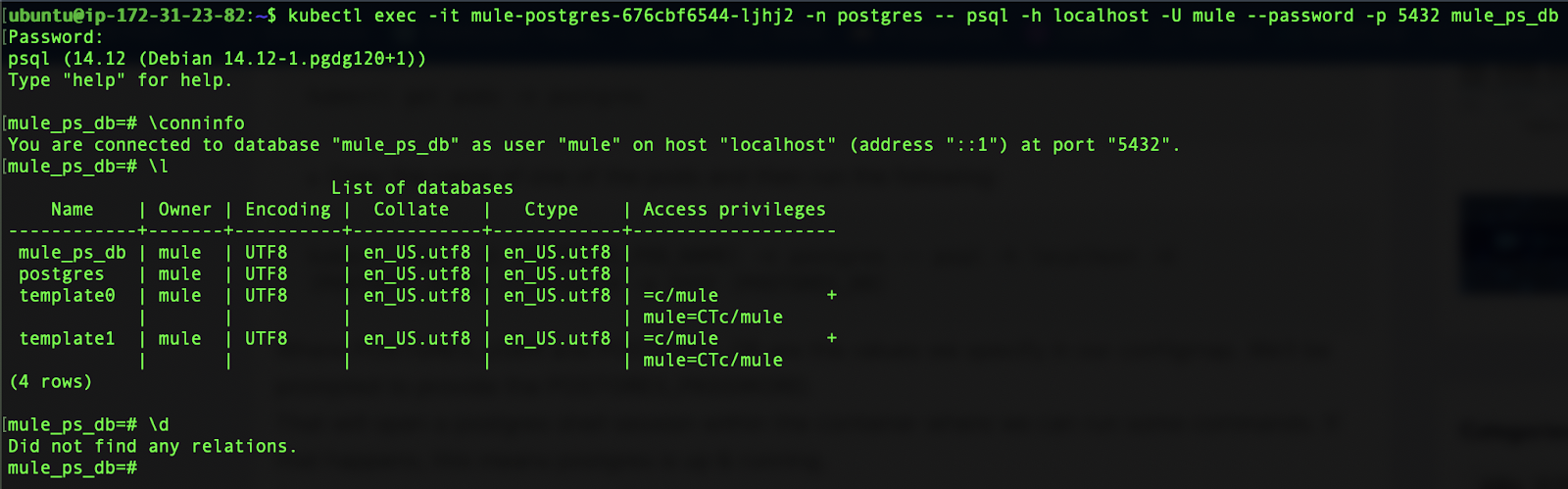

kubectl exec -it [POSTGRES_POD_NAME] -n postgres -- psql -h localhost -U [POSTGRES_USER] --password -p 5432 [POSTGRES_DB]

Where POSTGRES_USER and POSTGRES_DB are the values we specify in our configmap. We’ll be prompted to provide the POSTGRES_PASSWORD.
That will open a postgres shell session within the container where we can run some commands. If that happens, this means postgres is up & running.
From here we can run some useful commands to test our installation

Test the connection to the database:

mule_ps_db=# \conninfo

Get all the databases

mule_ps_db=# \l

Get all the tables of the current database (we’ll use it in our next post, when the persistence gateway is working and storing info from the mule apps)

mule_ps_db=# \d

Get all the records of a table (we’ll use it in our next post, when the persistence gateway is working and storing info from the mule apps)

In the next post we'll see how to set up Runtime Fabric to use this PostreSQL instance as the Persistence Gateway and provide the traditional Object Store functionality to our Mule apps.
